Chip Rendering

The way each chip renders in the Karli Studio chat is deduced from its row in the Chips table — there is no explicit "type" field. Three rendering modes are possible:

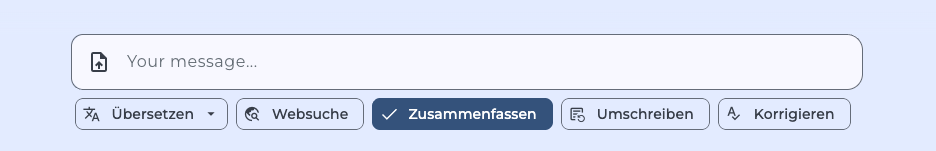

Action Chip (no values)

Leave Dropdown Values empty.

The chip is a simple, tappable action — selecting it triggers the chip's output without carrying any extra value. Use this for binary actions such as Translate, Summarize, or Explain.

The output Data contains:

{ "chip_label": "<label>", "message": "<user message>" }


Single-select Dropdown Chip

Set Dropdown Values (e.g. English,German,French or English=en,German=de,French=fr) and leave Dropdown Multi-select off.

The chip expands into a dropdown that lets the user pick one option. The chosen value (the right-hand side of Label=value, or the bare entry if no = is used) is sent into the flow.

The output Data contains:

{ "chip_label": "<label>", "chip_value": "<selected value>", "message": "<user message>" }

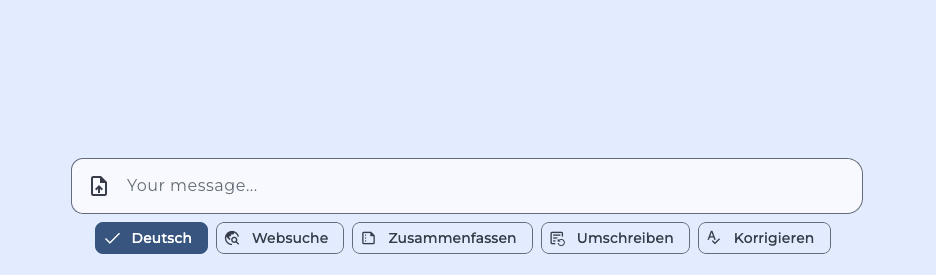

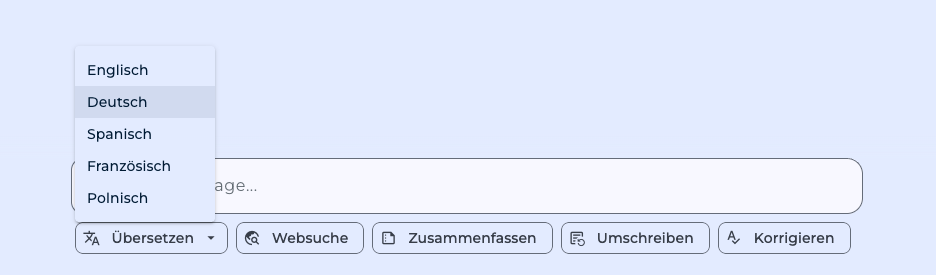

dropdown-open.png dropdown-selected-deutsch.png

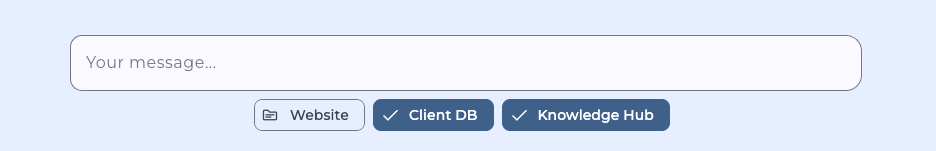

Multi-select Dropdown Chip

Set Dropdown Values and turn Dropdown Multi-select on.

The chip lets the user pick any subset of the configured values. The chosen values are delivered as a list.

The output Data contains:

{ "chip_label": "<label>", "chip_values": ["<value1>", "<value2>"], "message": "<user message>" }


Validation

If the user submits a value that isn't in the chip's configured Dropdown Values, the flow run fails with a validation error listing the allowed values. A chip with no configured values that nonetheless receives one also fails — action chips don't accept payloads.
